Bearing Units for Textile Machinery | Insert & Flange Bearing Selection
Application-based bearing unit selection from actual shaft, mounting and duty conditions.
Textile machinery combines high cycling, compact frames and persistent fibre contamination. Bearing noise or vibration can become a maintenance signal long before failure, while flange footprint and shaft alignment often determine whether a replacement can be installed without redesign. Selection should therefore separate the precision requirements of the actual shaft from the generic label “textile machine.”
Typical machine positions and series to review
| Equipment / process | Bearing position | Series to review | Key selection checks |
|---|---|---|---|
| Spinning frames | Roller and auxiliary shaft supports | EP-UC insert or compact flange families | Speed, noise, runout, fibre contamination |
| Weaving machines | Drive and guide shafts | EP-UCF / EP-UCFL where face mounting is required | Vibration, flange space and maintenance access |
| Warping machines | Roller and beam auxiliary supports | EP-UCP or flange family | Alignment, duty cycle and shaft geometry |
| Dyeing / finishing | Rollers and conveyor auxiliaries | Corrosion-sensitive or flange configurations as needed | Moisture, chemicals, temperature and sealing |
Speed and noise requirements must be measurable

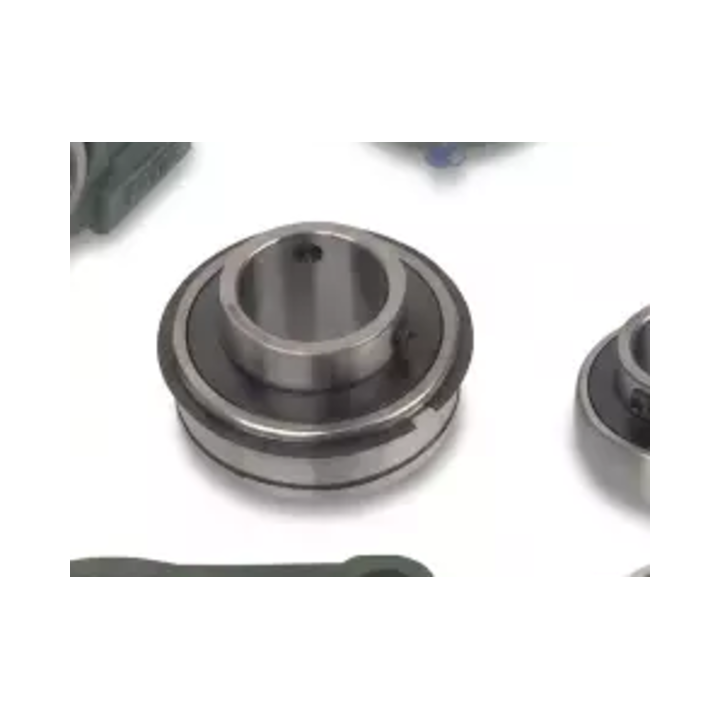

If a machine has a maximum vibration, noise or runout limit, provide the test method and acceptance value with the RFQ. Do not select a “low-noise” version solely from marketing language. Compare the insert geometry, shaft fit, locking method and housing support. Where the housing is integral to the machine, an EP-UC insert-only replacement may be more appropriate than a complete housed unit.
Installation and integration checks
On textile machinery, installation details need to be checked at the actual shaft position: confirm the shaft is clean and within the fit required by the selected locking method. Mounting faces should be flat enough to avoid forcing the housing out of alignment. Check bolt and wrench access, guards, adjacent couplings or sprockets, grease access and whether thermal movement or frame deflection can change alignment in service. A bearing unit cannot correct severe shaft bend or a distorted machine frame.
Maintenance and failure feedback
Fibre buildup can retain heat and contaminate seals, so cleaning access matters. Check flange fasteners, housing seating and shaft condition during planned maintenance. If a recurring bearing runs hot, investigate alignment, shaft condition, lubrication and machine vibration rather than repeatedly replacing the same model without diagnosing the cause.
What to include in the RFQ
For bearing enquiries involving textile machinery, send the machine type, current bearing model, shaft diameter, base or flange dimensions, locking method, speed/load information if available, environment, quantity and photos or drawings of the installed position. If the old unit failed, include the observed failure mode.
Frequently asked questions
Is C3 clearance always required for textile machinery?
No. Clearance should be specified from the machine design, speed, fit and temperature. Do not apply C3 automatically to every textile position.
When is EP-UCFL useful?
Its two-bolt oval flange can fit compact side plates where the mounting pattern matches; verify hole pitch and housing envelope.
What should be included in a high-speed RFQ?
Add shaft speed, bore, fit, load, temperature, vibration/noise requirement, housing geometry and lubrication conditions.
